Manual

Replica HX

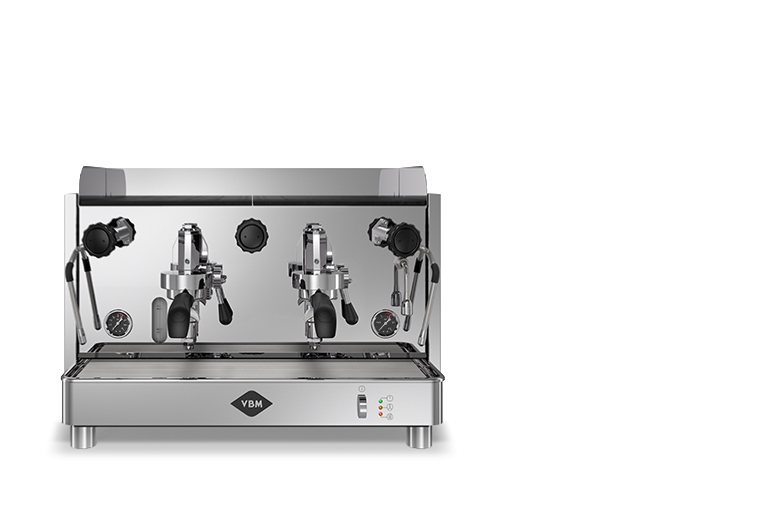

REPLICA HX

2 groups

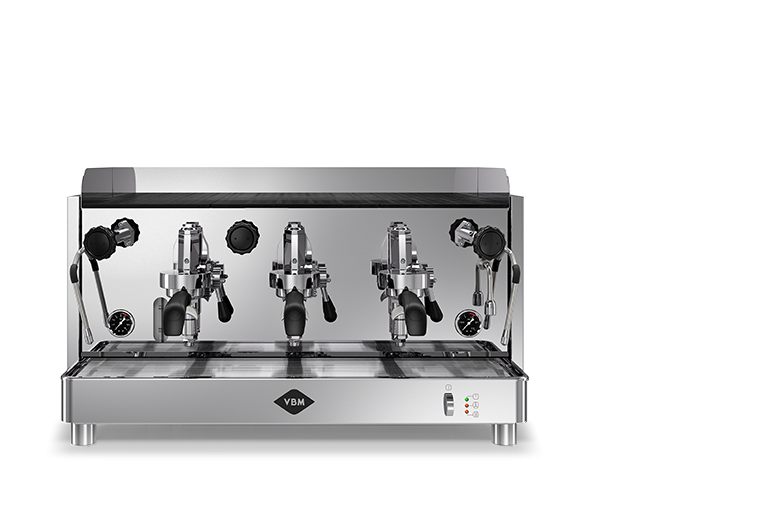

REPLICA HX

3 groups

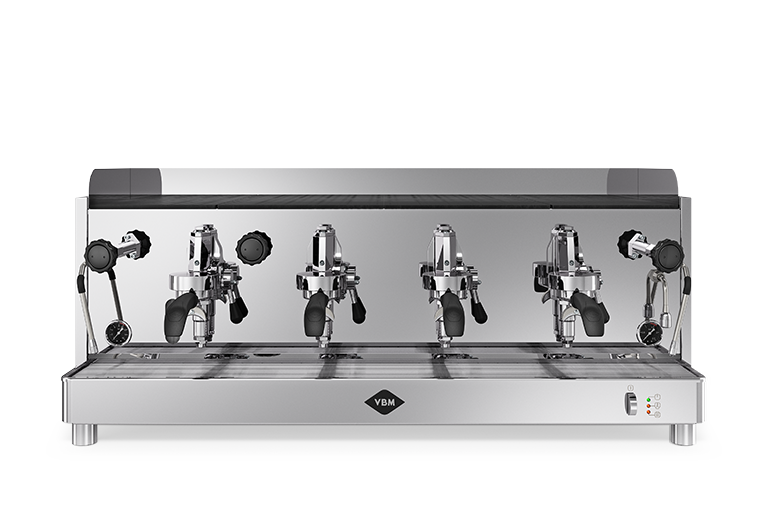

REPLICA HX

4 groups

Brewing group

VBM - E61

VBM – E61

Thermosiphonic circulation group in cromed-brass, with mechanical pre-infusion chamber.
Available with manual controls (lever) or electronic. Filter diameter 58 mm.

Technology

HX (Heater eXchanger)

HX technology, optimized to work in combination with VBM’s E61 group heads.
It’s based on the thermosiphonic circulation system with a dedicated heat exchanger for every group head.

Boiler

tech-number-1x 12 l.

tech-number-1x 18 l.

tech-number-1x 27 l.

Steam wands

tech-number-1Steam wand

tech-number-1Steam tap

Hot water wand

tech-number-1Hot water wand

tech-number-1Hot water tap

Cup warmer

Electric cup warmer with on/off switch.

Power and consumption

Power: 4000 W.
Line voltage: 240 V.
Frequency: 50/60 Hz.

Power: 5000 W.
Line voltage: 240 V.
Frequency: 50/60 Hz.

Power: 5000 W.
Line voltage: 240 V.
Frequency: 50/60 Hz.

Size and weight

Width: 73 cm.
Height: 55 cm.
Depth: 60 cm.
Weight: 85 Kg.

Width: 90 cm.
Height: 55 cm.
Depth: 60 cm.
Weight: 95 Kg.

Width: 115 cm.
Height: 55 cm.
Depth: 60 cm.
Weight: 105 Kg.

In the box

tech-number-1 Instruction manual
tech-number-1 Blind filter
tech-number-1 Charge tube 3/8″ gas
 tech-number-1Discharge rubber tube
tech-number-1 EasyFlat double filter holder
tech-number-2tech-number-3tech-number-4  EasyFlat single filter holder

Electronic

Replica HX

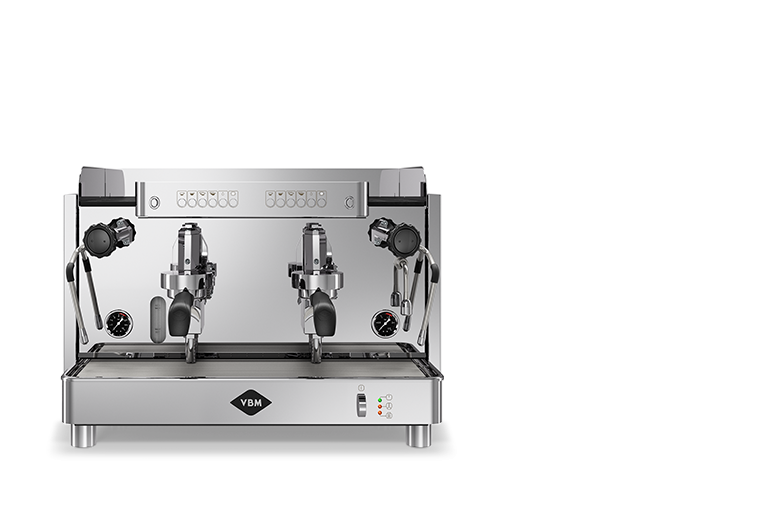

REPLICA HX

2 groups

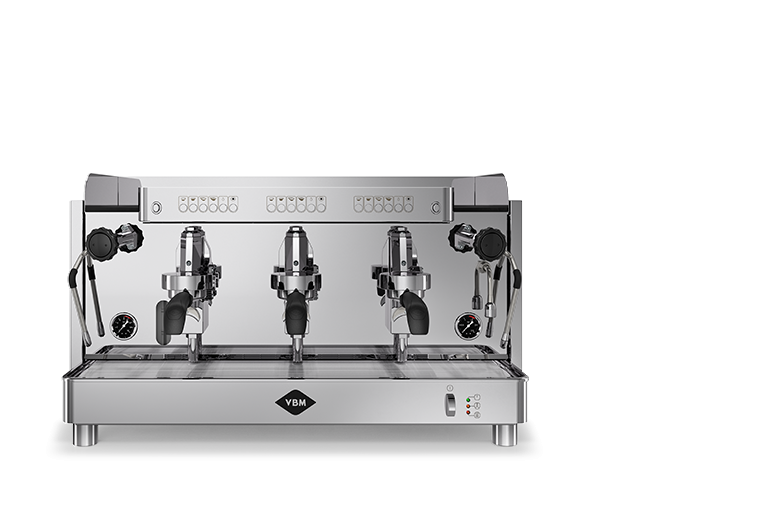

REPLICA HX

3 groups

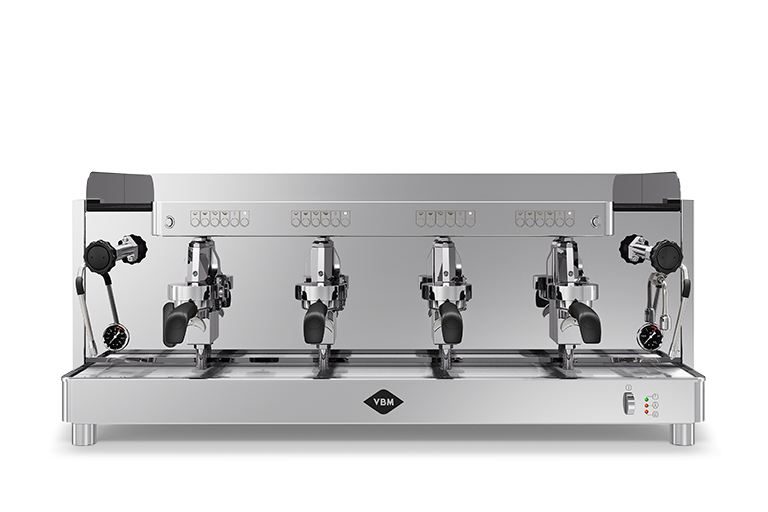

REPLICA HX

4 groups

Brewing group

VBM - E61

VBM – E61

Thermosiphonic circulation group in cromed-brass, with mechanical pre-infusion chamber.
Available with manual controls (lever) or electronic. Filter diameter 58 mm.

Technology

HX (Heater eXchanger)

HX technology, optimized to work in combination with VBM’s E61 group heads.
It’s based on the thermosiphonic circulation system with a dedicated heat exchanger for every group head.

Boiler

tech-number-1x 12 l.

tech-number-1x 18 l.

tech-number-1x 27 l.

Steam wands

tech-number-1Steam wand

tech-number-1Steam tap

Hot water wand

tech-number-1Hot water wand

tech-number-1Hot water dispensing button

Cup warmer

Electric cup warmer with on/off switch.

Power and consumption

Power: 4000 W.
Line voltage: 240 V.
Frequency: 50/60 Hz.

Power: 5000 W.
Line voltage: 240 V.
Frequency: 50/60 Hz.

Power: 5000 W.
Line voltage: 240 V.
Frequency: 50/60 Hz.

Size and weight

Width: 73 cm.
Height: 55 cm.
Depth: 60 cm.
Weight: 85 Kg.

Width: 90 cm.
Height: 55 cm.
Depth: 60 cm.
Weight: 95 Kg.

Width: 115 cm.
Height: 55 cm.
Depth: 60 cm.
Weight: 105 Kg.

In the box

tech-number-1 Instruction manual
tech-number-1 Blind filter
tech-number-1 Charge tube 3/8″ gas
 tech-number-1Discharge rubber tube
tech-number-1 EasyFlat double filter holder
tech-number-2tech-number-3tech-number-4  EasyFlat single filter holder
